IP65 Rated, Metal Body, 22mm Positive Opening NC Contacts

When a machine absolutely must be stopped (e.g. emergency situations), E-stop actuators are used to immediately initiate a complete and safe stop. Therefore, E-stop actuators have to be easily identified and readily accessible by any employee. Requirements of the CSA Z432-04 Standard “Safeguarding of the Machinery” clearly state that E-stop push buttons shall be maintained type, red mushroom head with a yellow background, a color combination reserved exclusively for this button's purpose. Moreover the contact elements shall be Positive Opening type. In the event that E-Stop push button is activated the normally closed contact will be open even if contacts are welded.

General Safety Company can offer a full range of E-Stop pushbuttons as well as other pilot devices. All E-Stop pushbuttons meet the requirements of the CSA Z432-04, IEC/EN 60947-1 and IEC/EN 60947-5-1 Standards.

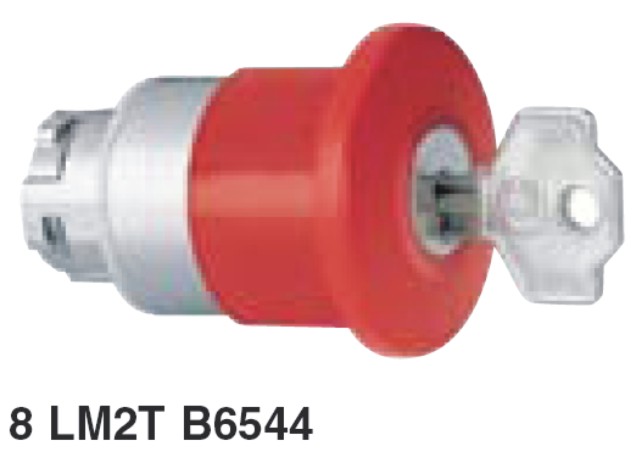

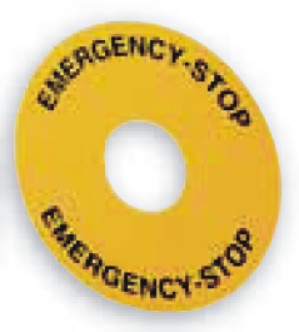

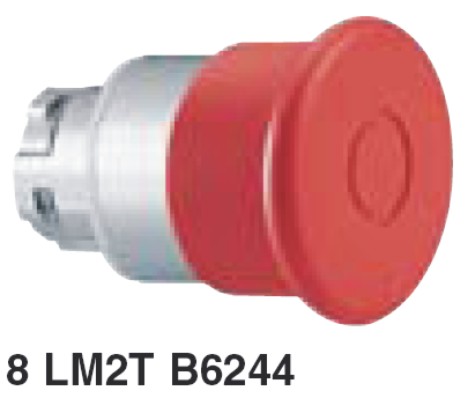

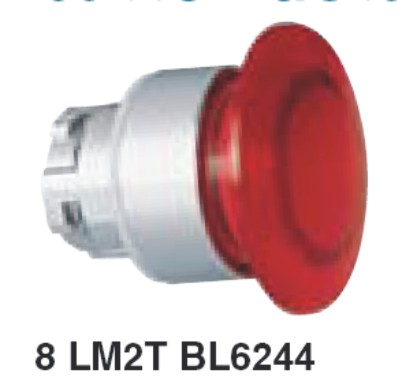

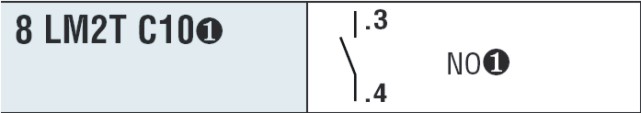

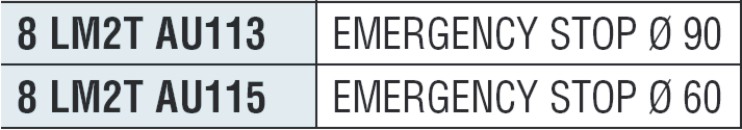

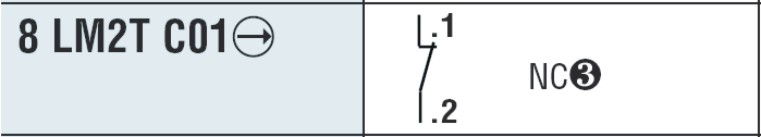

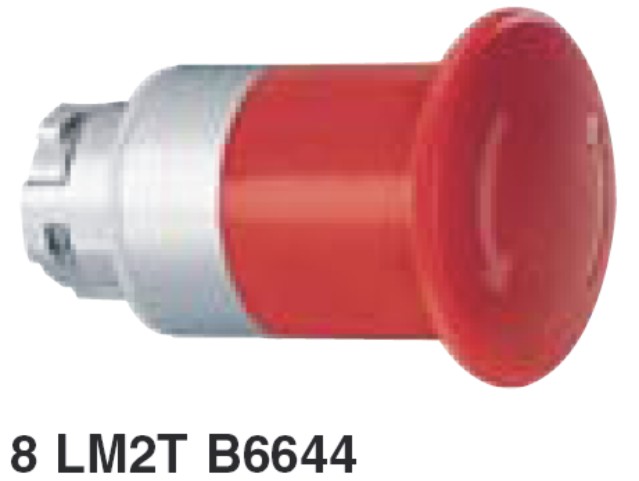

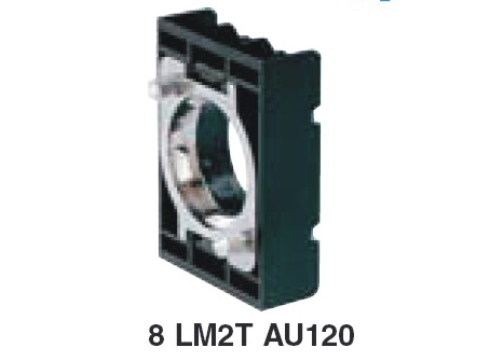

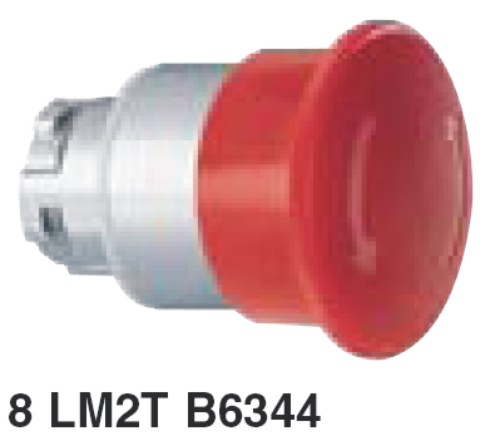

Push Pull Type Turn-To Release Type Turn-To Release Type Lockable Push Pull Type Illuminated Turn-To Release Type Extended Yellow Plastic Disk for E-Stop Push Buttons Mounting Adapter Contact Elements Download Full Catalog Materials An aluminum and zinc alloy is used for the metal part whereas plastic parts are made of polyamide and polycarbonate. Mechanical endurance Operating force: 0.8 kg (actuator). Mechanical life: – Push-push actuators: 500,000 cycles – Mushroom head latch buttons: 300,000 cycles – All others: 1,000,000 cycles. Mounting adapter Type: LM2T AU120. Actuators latch onto the mounting adapter by simple rotation. The adapter is fixed to the mounting surface by means of incorporated screws (Tmax = 0.8 Nm). Auxiliary contacts: Type: LM2T C10 (1NO) LM2T C01 (1NC) (Positive Opening type) Auxiliary contacts snap onto the mounting adapter. Up to 4 auxiliary contacts can be fitted on the mounting: 2 on the right and 2 on the left.
